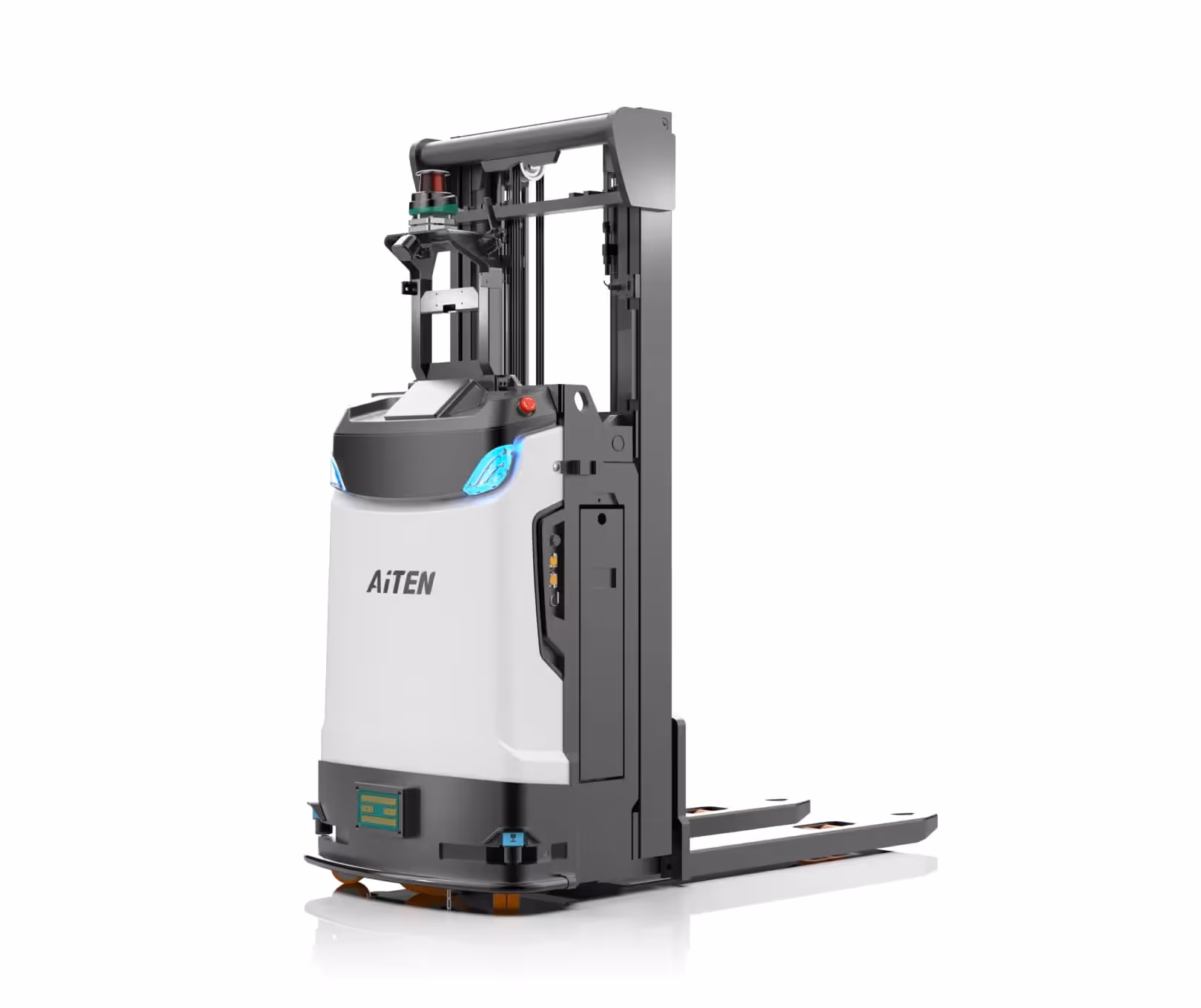

AS Series
Introduction

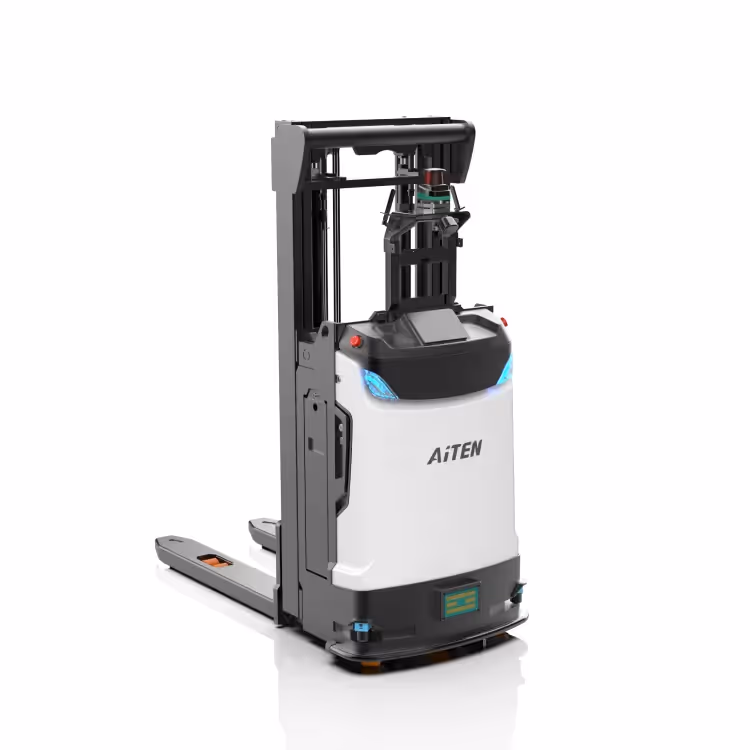

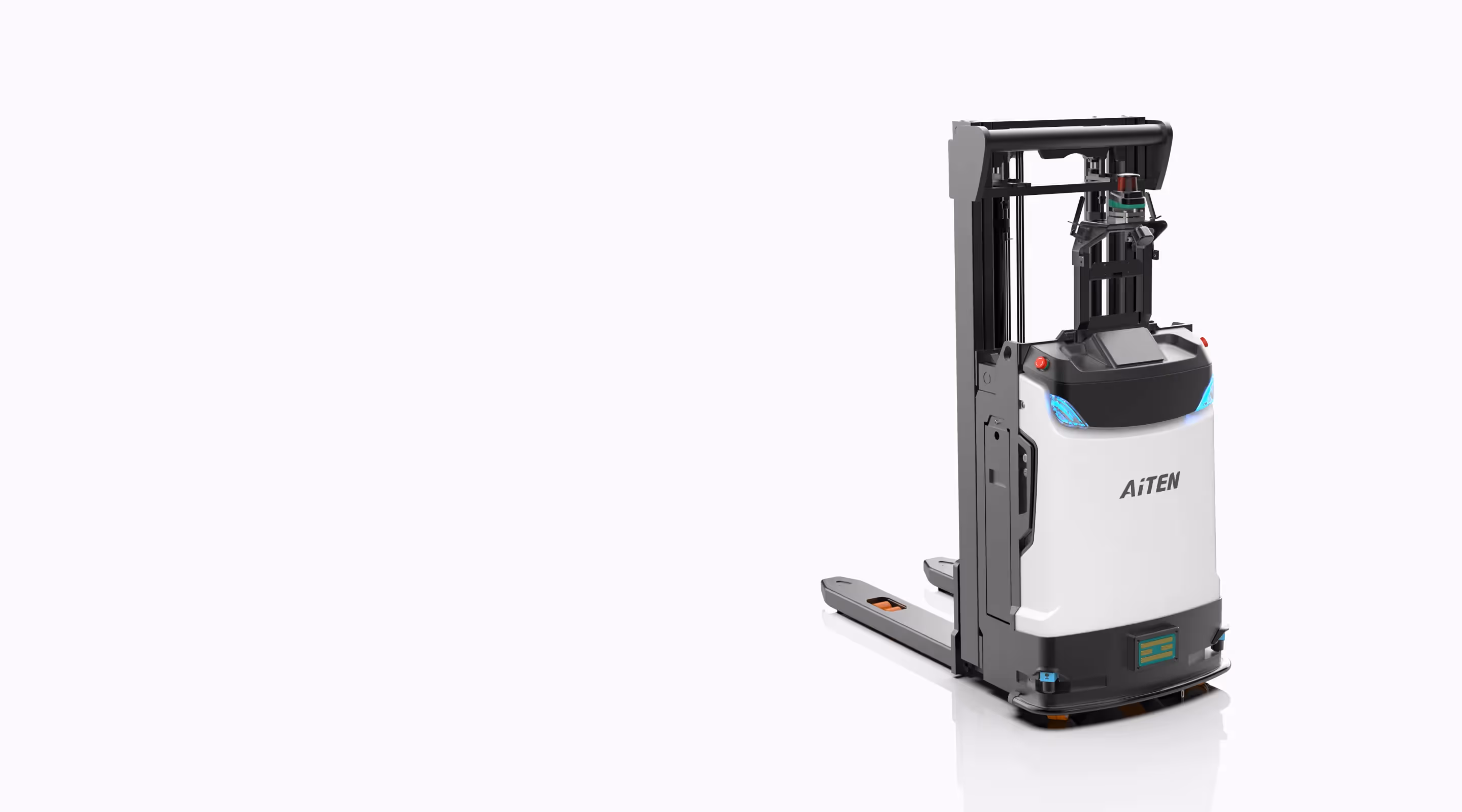

The AiTEN AS series consists of cutting-edge automated guided forklifts (AGF) characterized by a compact, modular design. The AS Series adopts a steering wheel chassis mechanism integrated with laser SLAM navigation. This enables autonomous navigation and obstacle avoidance, allowing for flexible and effective operations in complex, industrial environments.
Introduction
The AiTEN AS series consists of cutting-edge automated guided forklifts (AGF) characterized by a compact, modular design. The AS Series adopts a steering wheel chassis mechanism integrated with laser SLAM navigation. This enables autonomous navigation and obstacle avoidance, allowing for flexible and effective operations in complex, industrial environments.
Application
Point-to-Point Transport for Heavy Pallets:
Ideal for handling pallet goods weighing up to 3000kg, requiring frequent and repetitive movements.
Efficient Operation in Narrow Aisles:
Perfect for environments with an aisle width of 2.6/2.8 meters, where traditional AGVs cannot maneuver effectively.
Efficient Handling for Pallet Racking:
Capable of placing goods on shelves ranging from 1.6m to 6.0m in height, reducing the complexities of traditional forklift operations and minimizing risks associated with rack alignment (requiring certified forklift operators).
Key Features
Storage Location Determination & Pallet Recognition:
Swift and accurate inventory management with advanced machine learning perception.
Rapid Auto Charging & Extended Runtime:
Quick 2-hour auto charging for up to 10 hours of runtime, supporting 24/7 around-the-clock operation.

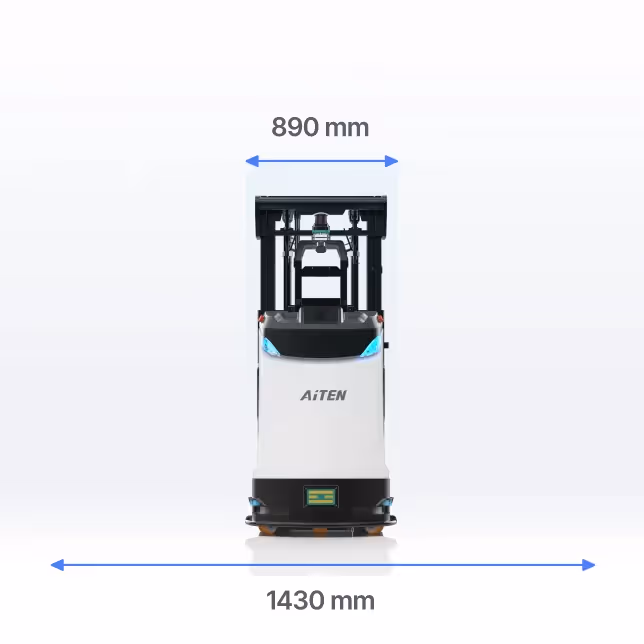

Compact Design:
Measures at an impressively compact 1902 × 890 × 1860 mm (AS15).

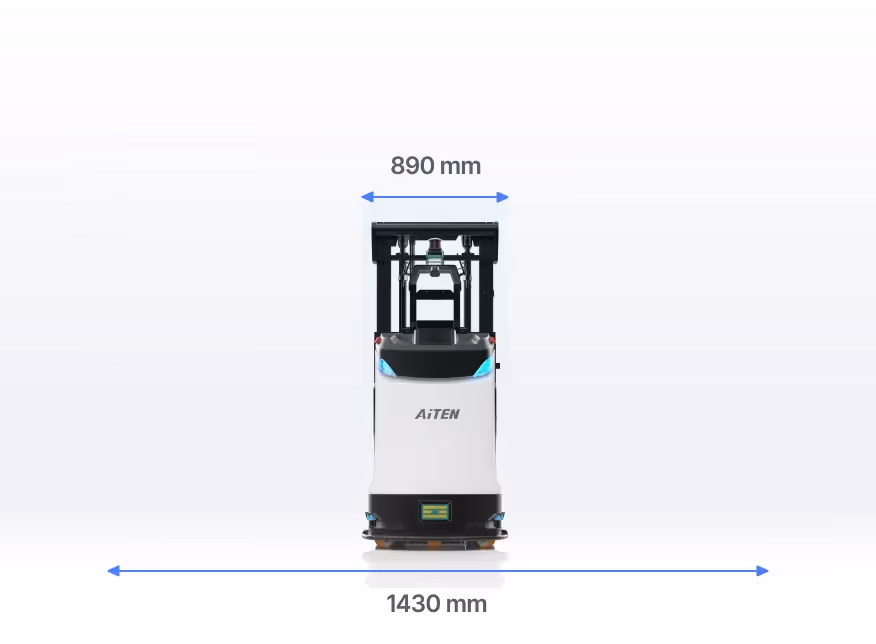

Superb Maneuverability:
Capable of navigating through narrow aisles with a turning radius of 1,430mm (AS15).
AdvancedNavigation Engine:
Powered by AiTEN's in-house laser SLAM algorithms for optimal path planning and smart obstacle avoidance.
Self-Adaptive Perception System:
Equipped with a sophisticated perception system that rapidly and accurately identifies pallets.
Remote Scheduling & Management:
Powered by AiTEN's RDS (Robot Dispatch System) to achieve intelligent scheduling and multi-robot collaboration.

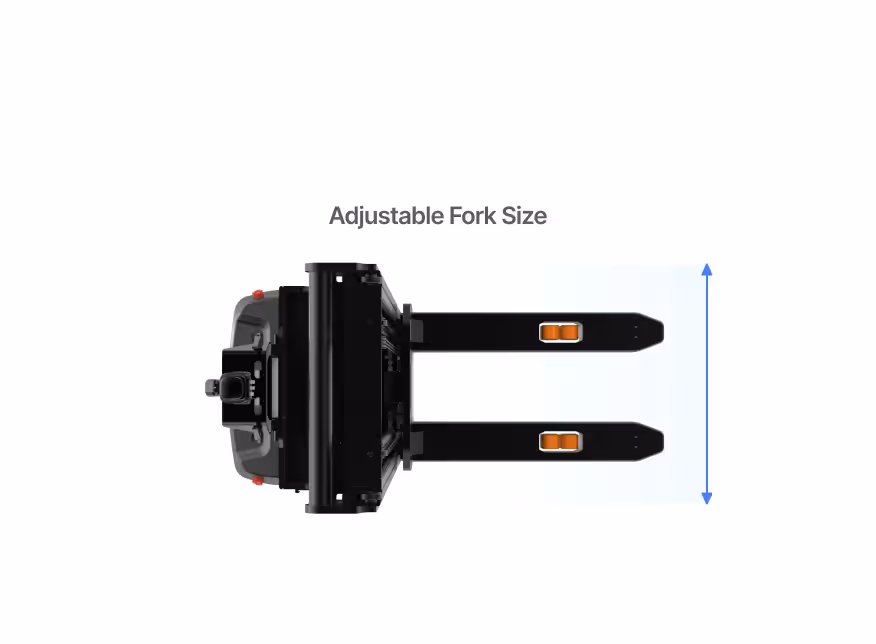

Adjustable Fork Size:
Adaptable to various pallet sizes.
Storage Location Determination & Pallet Recognition:
Swift and accurate inventory management with advanced machine learning perception.
Rapid Auto Charging & Extended Runtime:
Quick 2-hour auto charging for up to 10 hours of runtime, supporting 24/7 around-the-clock operation.
Compact Design:
Measures at an impressively compact 1902 × 890 × 1860 mm (AS15).
Superb Maneuverability:
Capable of navigating through narrow aisles with a turning radius of 1,430mm (AS15).
Adjustable Fork Size:
Adaptable to various pallet sizes.
Smart Obstacle Avoidance:
360° perception with LiDAR-based, multi-sensor fusion.
Proactive Prediction:
Capable of pre-setting perception, deceleration and stop zones for effective decision-making.
AdvancedNavigation Engine:
Powered by AiTEN's in-house laser SLAM algorithms for optimal path planning and smart obstacle avoidance.
Self-Adaptive Perception System:
Equipped with a sophisticated perception system that rapidly and accurately identifies pallets.
Remote Scheduling & Management:
Powered by AiTEN's RDS (Robot Dispatch System) to achieve intelligent scheduling and multi-robot collaboration.
Storage Location Determination & Pallet Recognition:
Swift and accurate inventory management with advanced machine learning perception.
Rapid Auto Charging & Extended Runtime:
Quick 2-hour auto charging for up to 10 hours of runtime, supporting 24/7 around-the-clock operation.
Compact Design:
Measures at an impressively compact 1902 × 890 × 1860 mm (AS15).
Superb Maneuverability:
Capable of navigating through narrow aisles with a turning radius of 1,430mm (AS15).
AdvancedNavigation Engine:
Powered by AiTEN's in-house laser SLAM algorithms for optimal path planning and smart obstacle avoidance.
Self-Adaptive Perception System:
Equipped with a sophisticated perception system that rapidly and accurately identifies pallets.
Remote Scheduling & Management:
Powered by AiTEN's RDS (Robot Dispatch System) to achieve intelligent scheduling and multi-robot collaboration.
Storage Location Determination & Pallet Recognition:
Swift and accurate inventory management with advanced machine learning perception.
Rapid Auto Charging & Extended Runtime:
Quick 2-hour auto charging for up to 10 hours of runtime, supporting 24/7 around-the-clock operation.
Compact Design:
Measures at an impressively compact 1902 × 890 × 1860 mm (AS15).
Superb Maneuverability:
Capable of navigating through narrow aisles with a turning radius of 1,430mm (AS15).
AdvancedNavigation Engine:
Powered by AiTEN's in-house laser SLAM algorithms for optimal path planning and smart obstacle avoidance.
Self-Adaptive Perception System:
Equipped with a sophisticated perception system that rapidly and accurately identifies pallets.
Remote Scheduling & Management:
Powered by AiTEN's RDS (Robot Dispatch System) to achieve intelligent scheduling and multi-robot collaboration.
Adjustable Fork Size:
Adaptable to various pallet sizes.
Smart Obstacle Avoidance:
360° perception with LiDAR-based, multi-sensor fusion.
Proactive Prediction:
Capable of pre-setting perception, deceleration and stop zones for effective decision-making.
Key Benefits
Streamlined Data Management:
Achieve digitization of material and logistics information for real-time tracking and better decision-making.
60%* Reduction in Unnecessary Staff Movement:
Allow your team to focus on more valuable tasks.
30%* Higher Productivity:
Enhance overall operational efficiency, leading to faster and more reliable workflows.

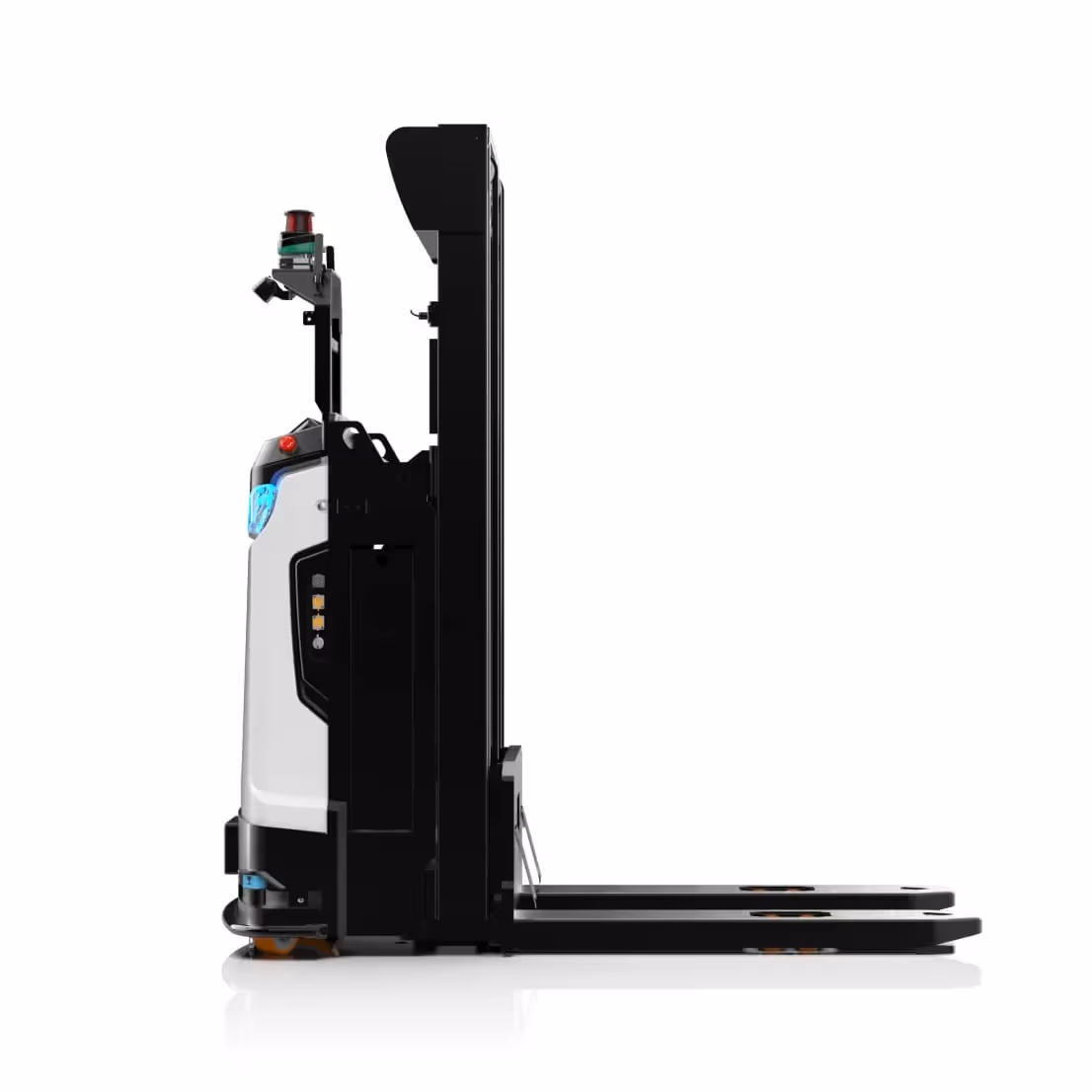

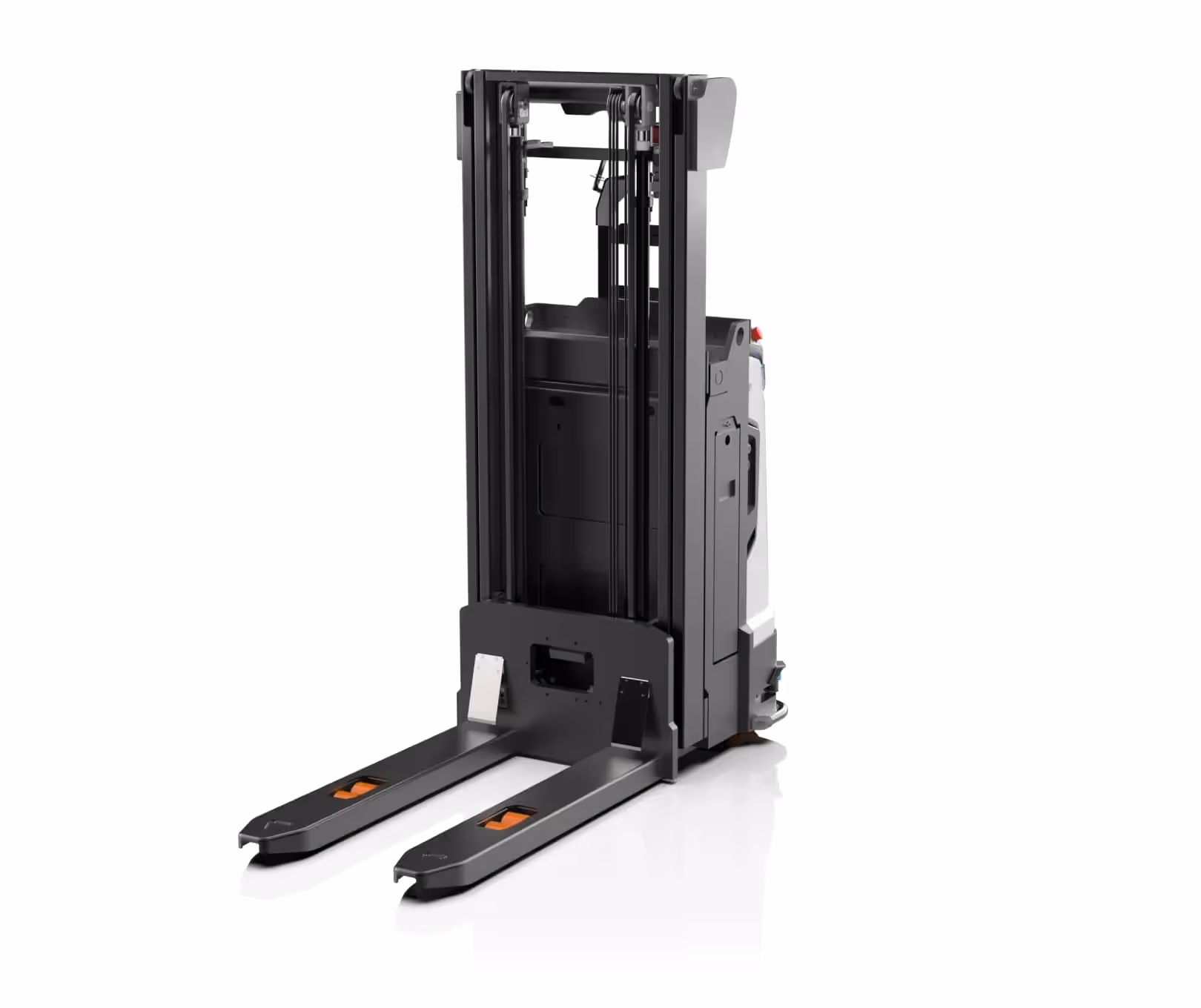

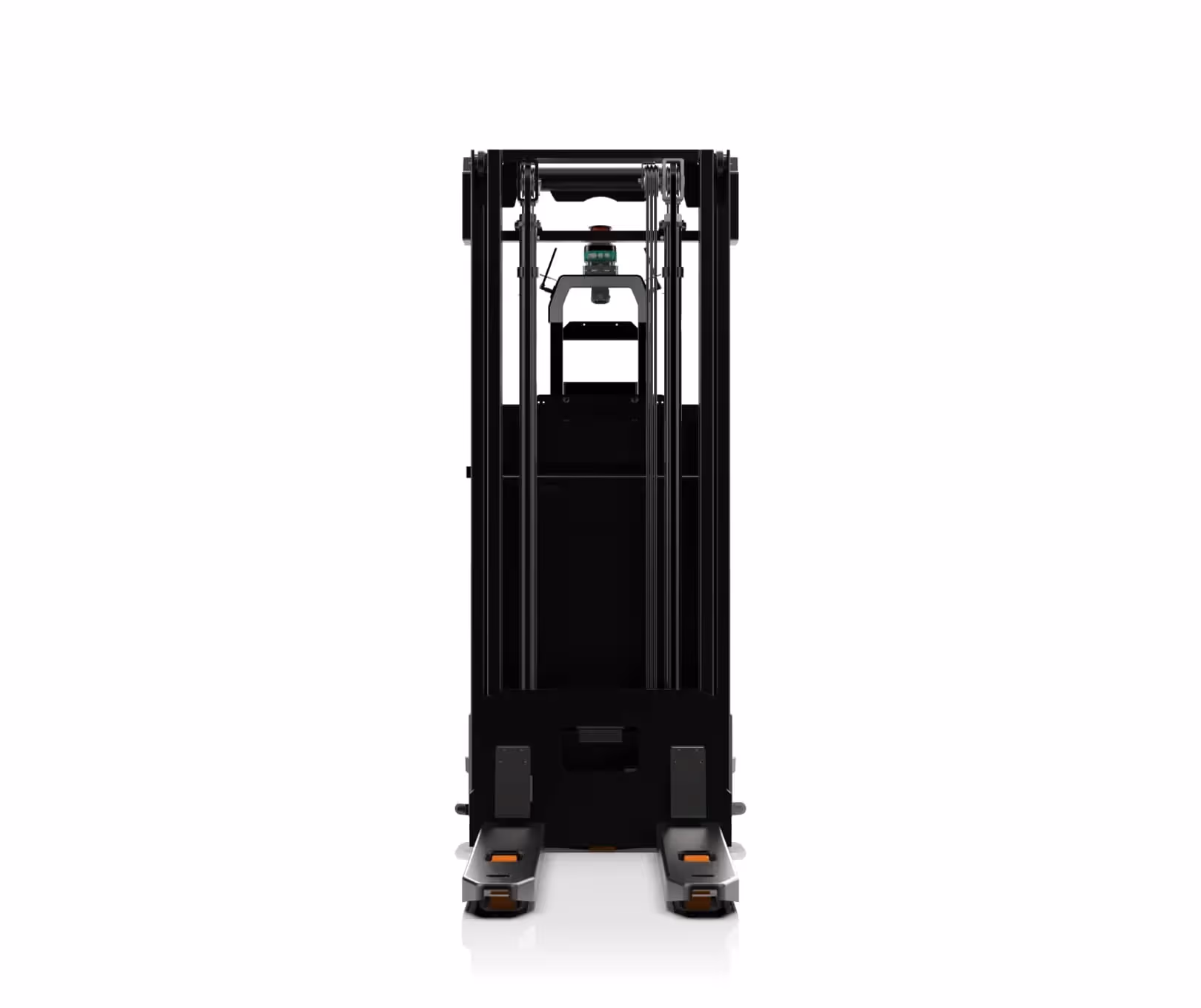

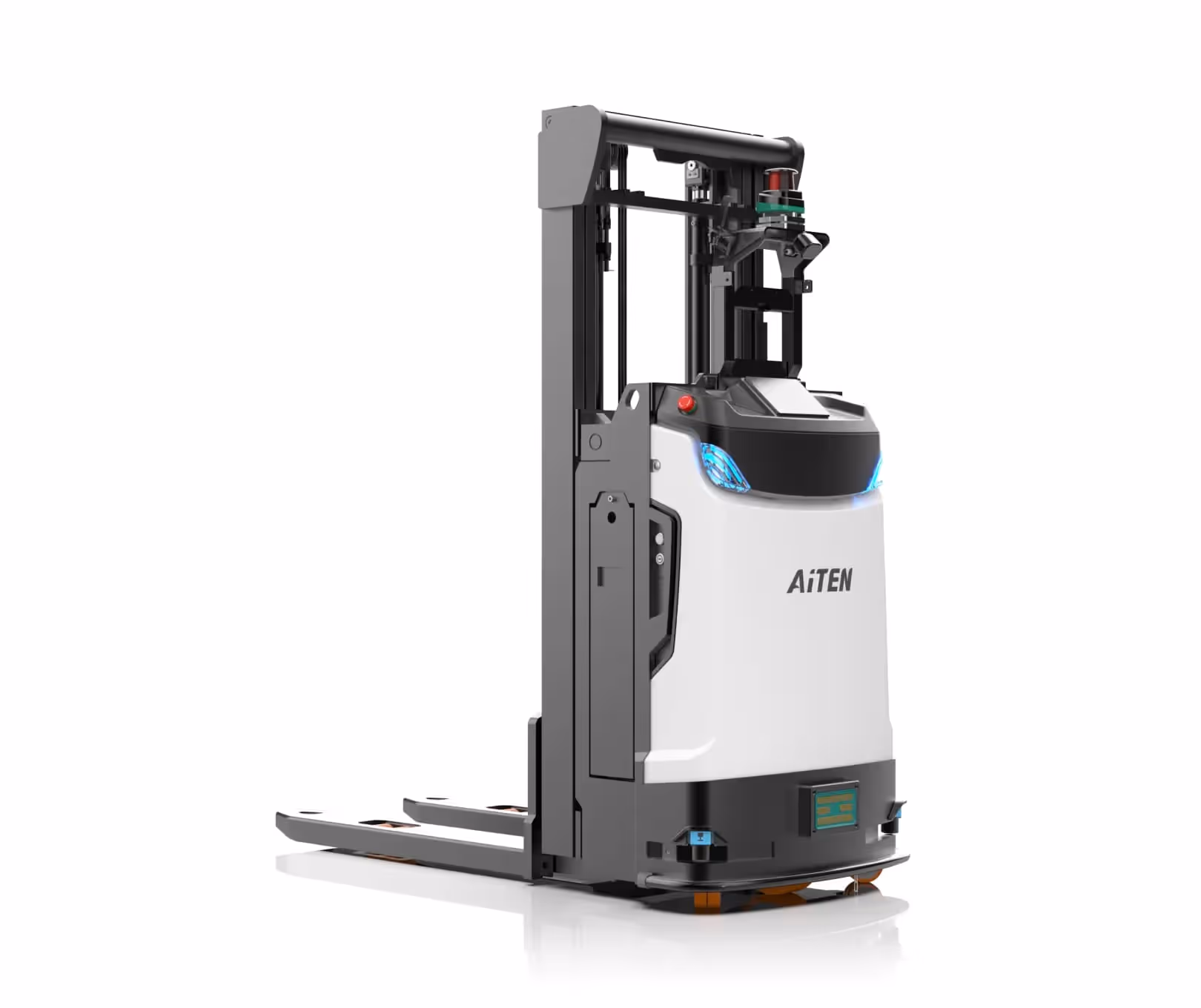

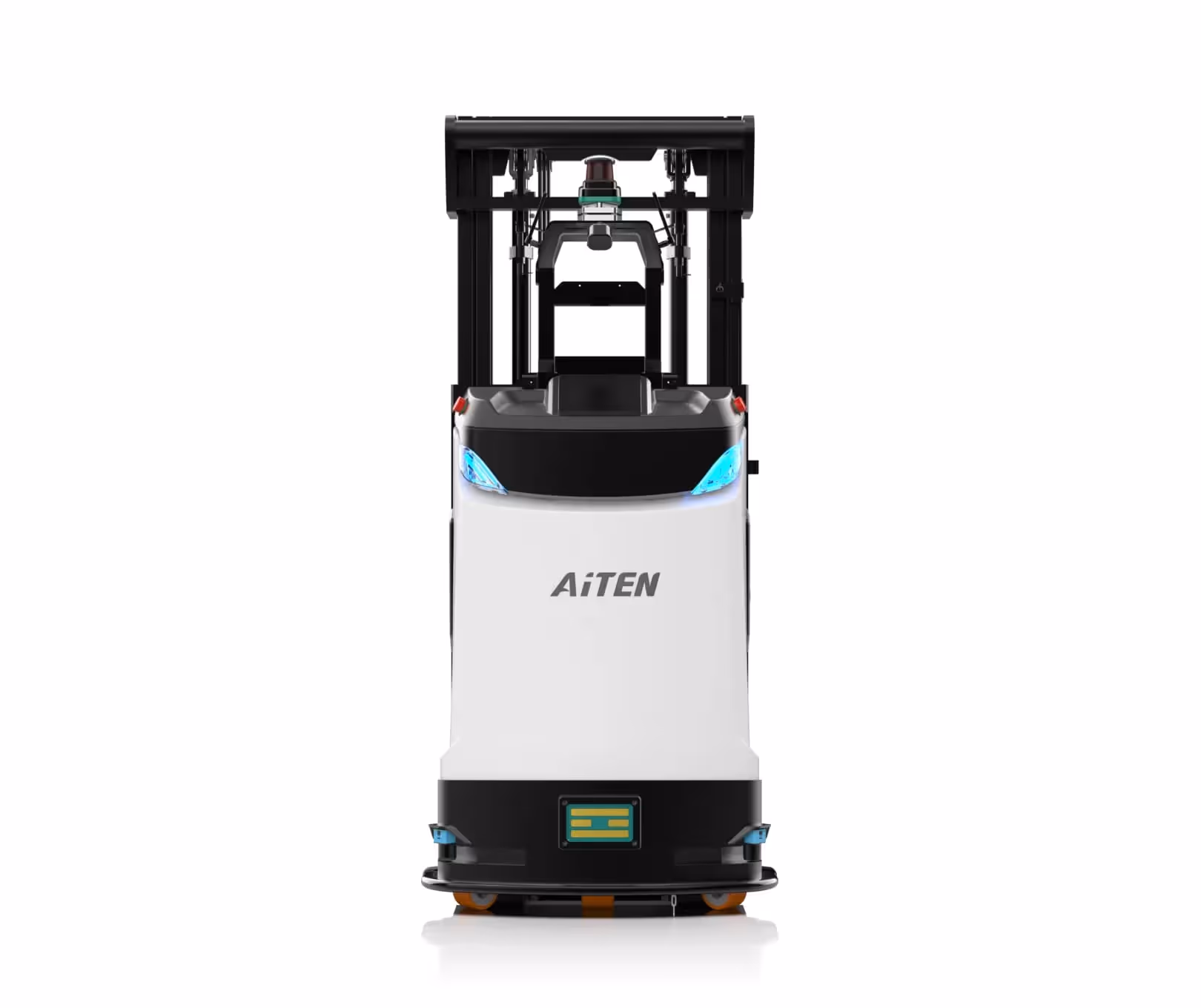

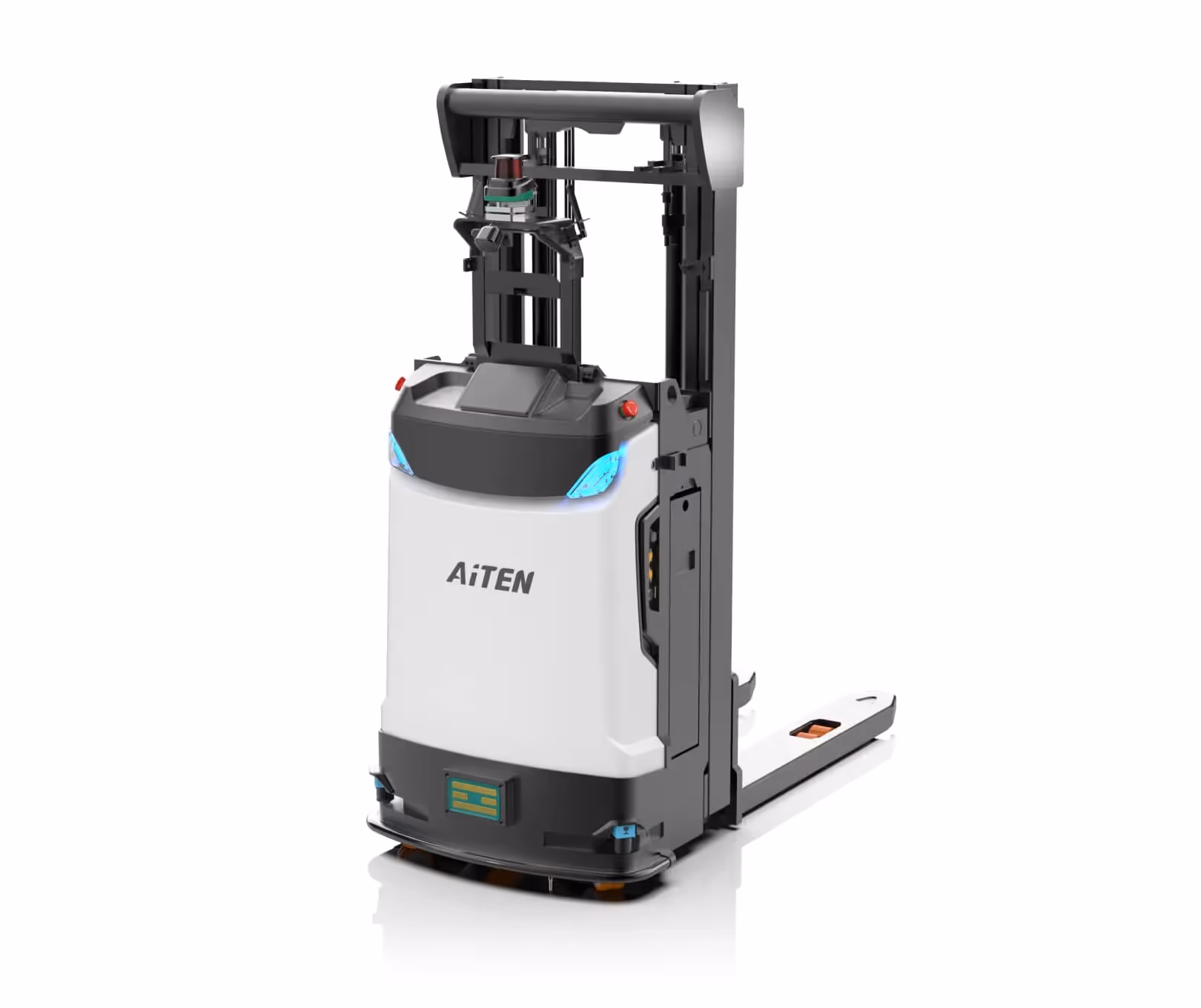

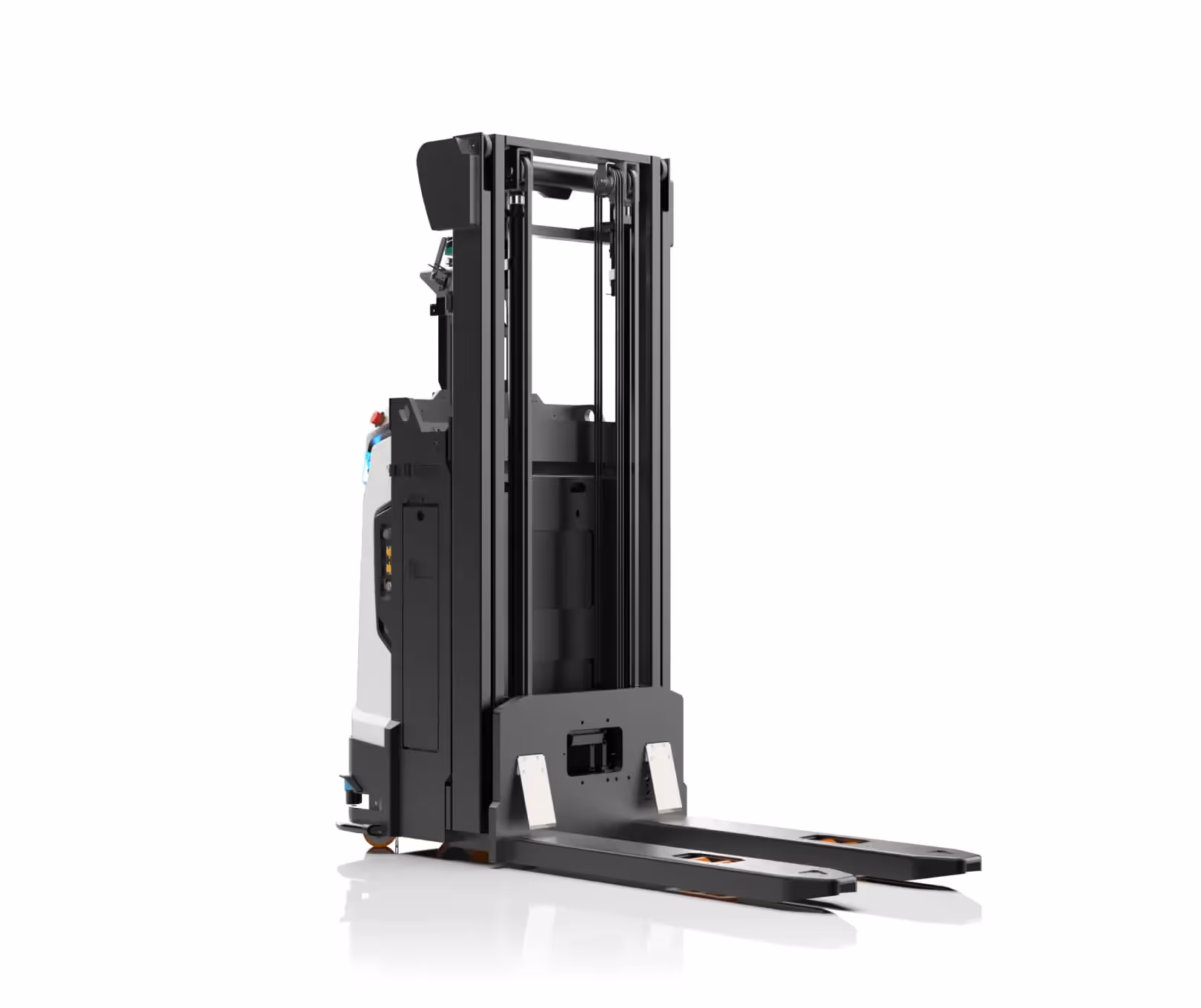

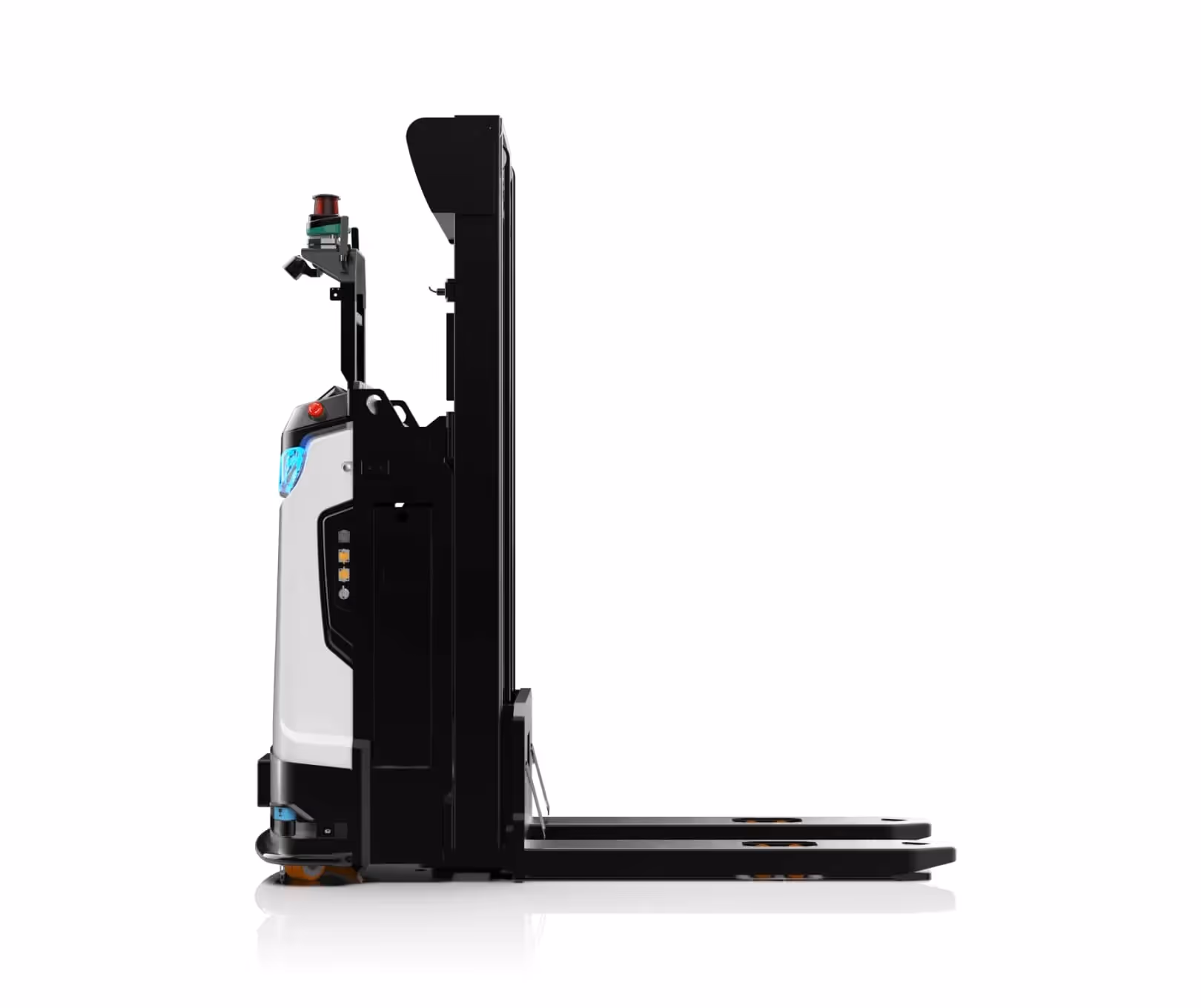

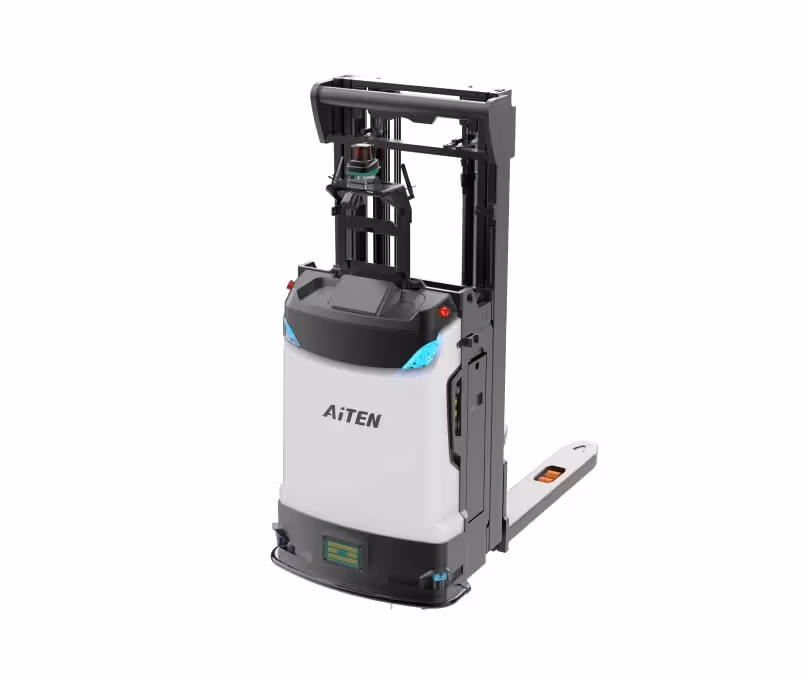

AS15
Dimensions (L × W × H) 1902 x 890 x 2020
Rated Load 1,500 kg
Load Center 600 mm
Turning Radius 1,430 mm
Right-Angle Stacking Aisle Width (1000x1200 Pallet, 1000 Fork Entry) 2350 mm
Lifting Height 3000 mm
Travel Speed (no-load / full-load) 1.5/1 m/s
Battery Voltage/Capacity 24V / 210 Ah

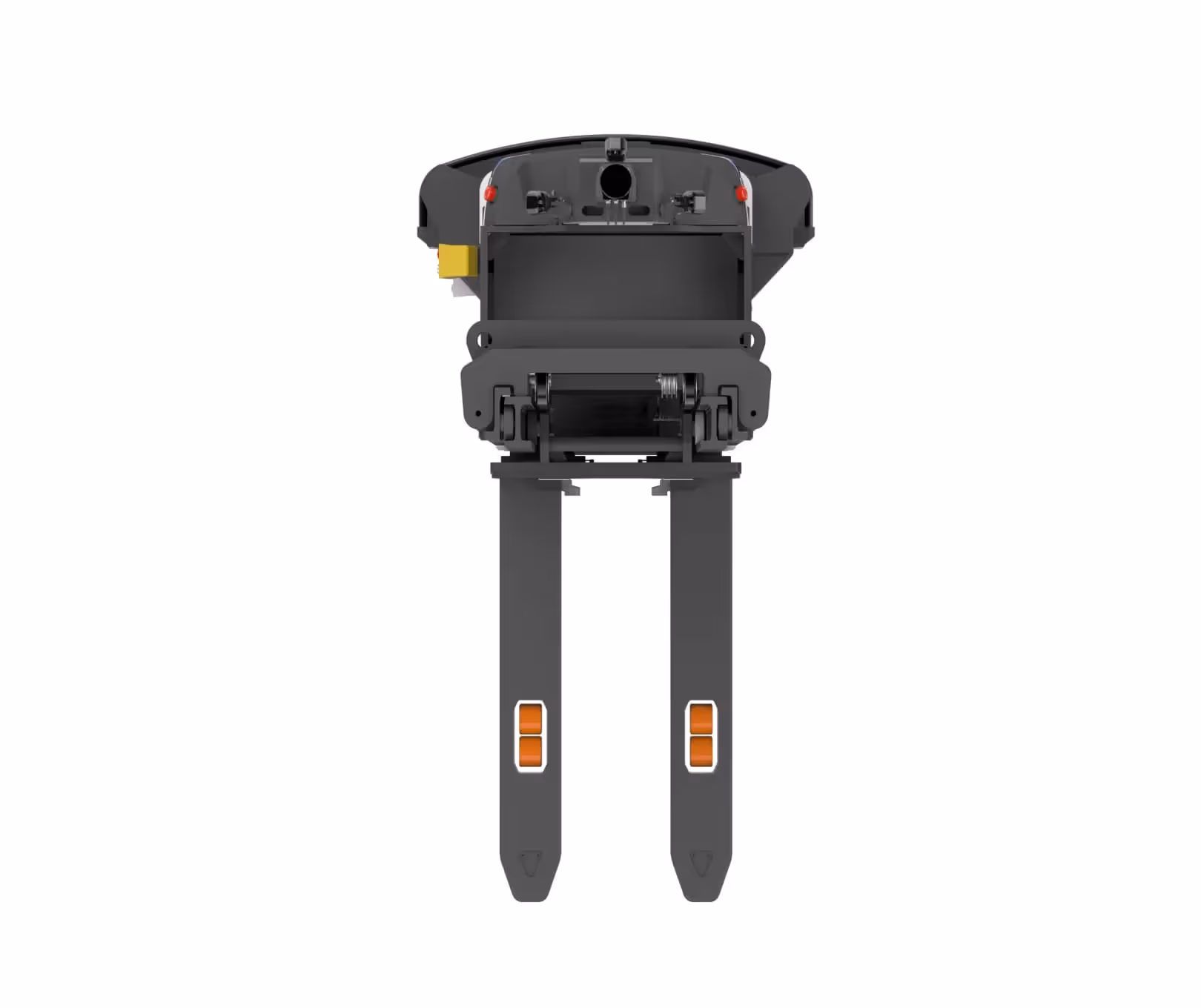

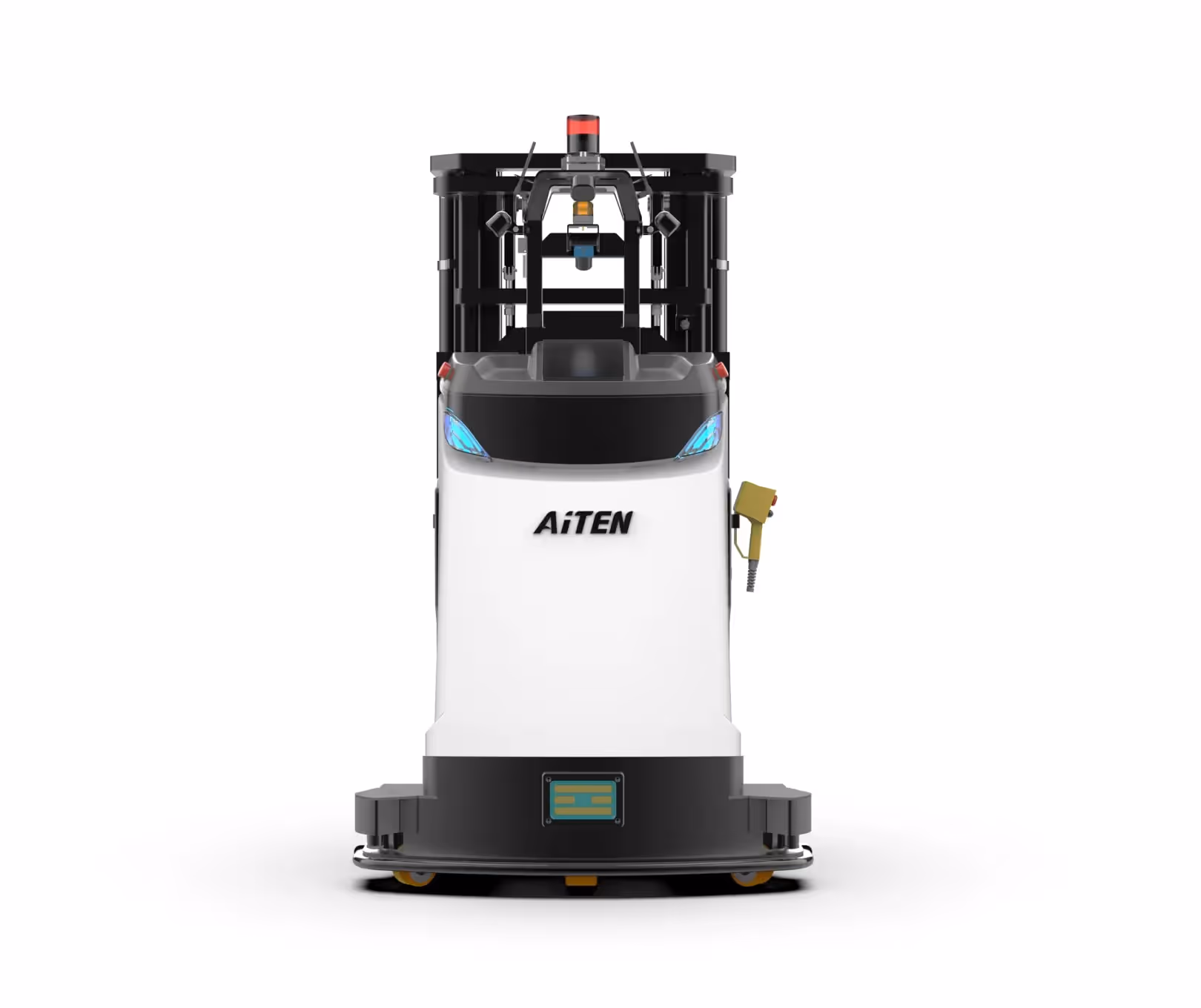

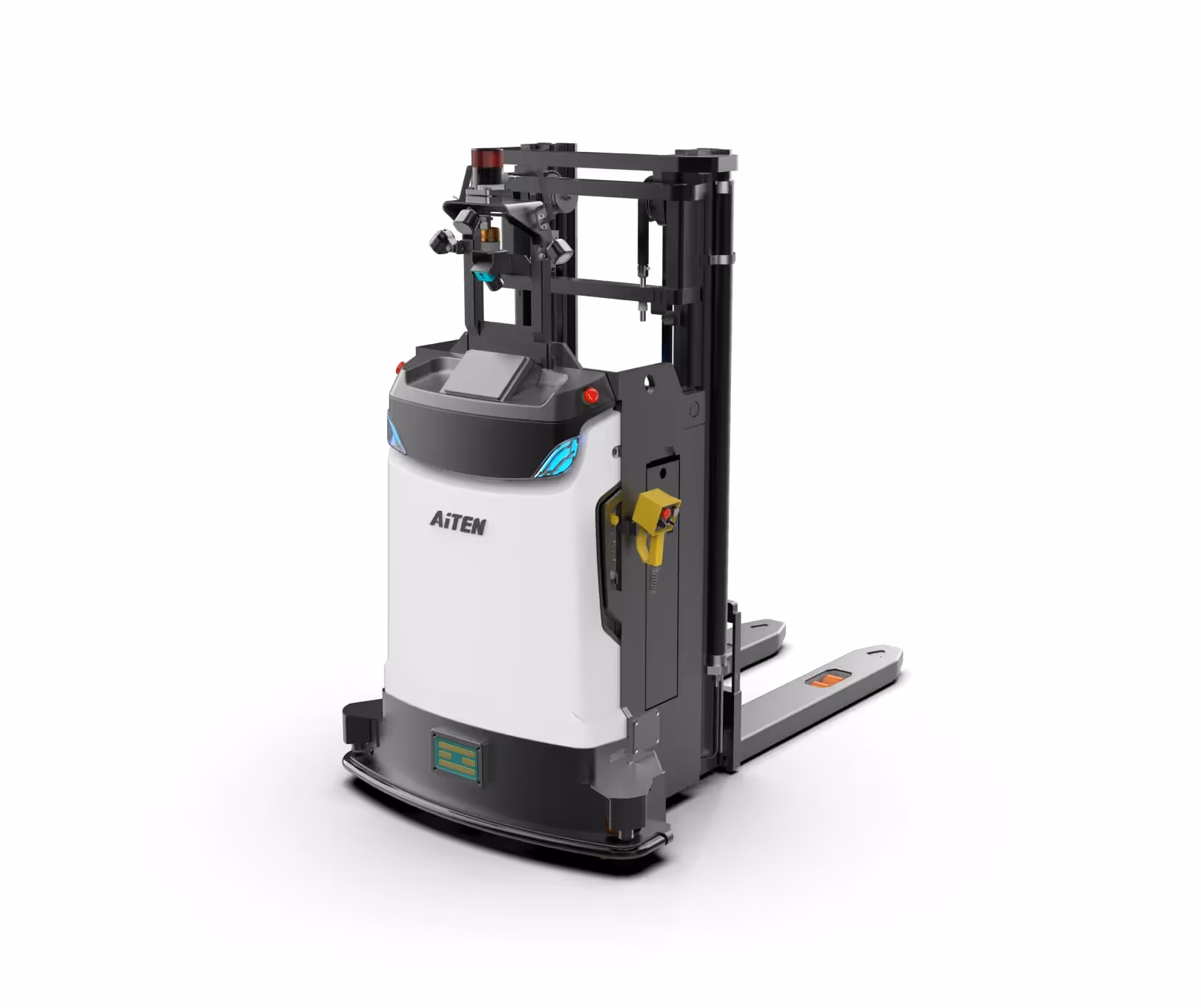

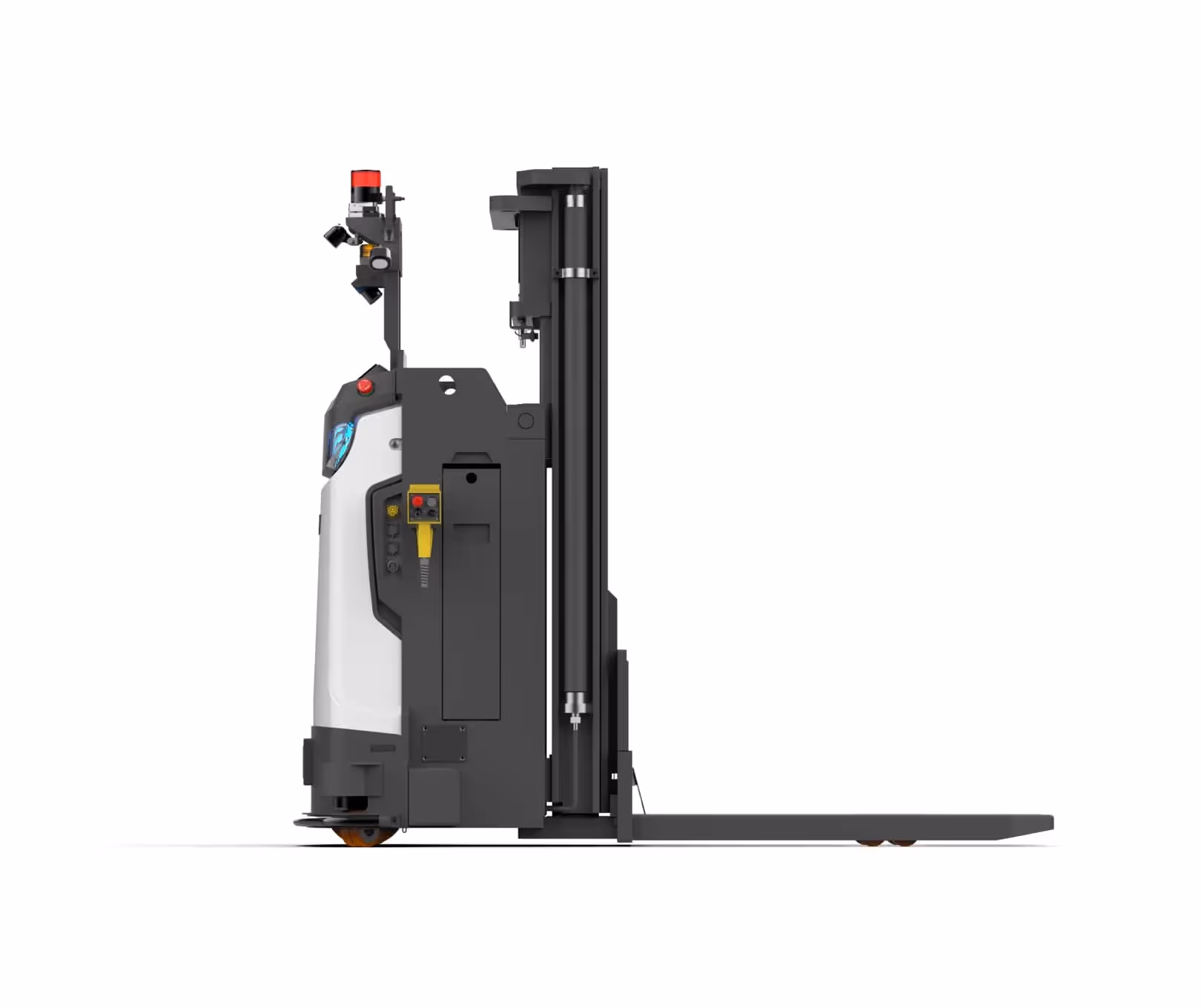

AS20
Dimensions (L × W × H) 2475 x 1100 x 2430 mm
Rated Load 2,000 kg
Load Center 600 mm
Turning Radius 1950 mm
Right-Angle Stacking Aisle Width (1000x1200 Pallet, 1000 Fork Entry) 2850 mm
Lifting Height 3000 mm
Travel Speed (no-load / full-load) 1.5/1 m/s
Battery Voltage/Capacity 24V / 210 Ah

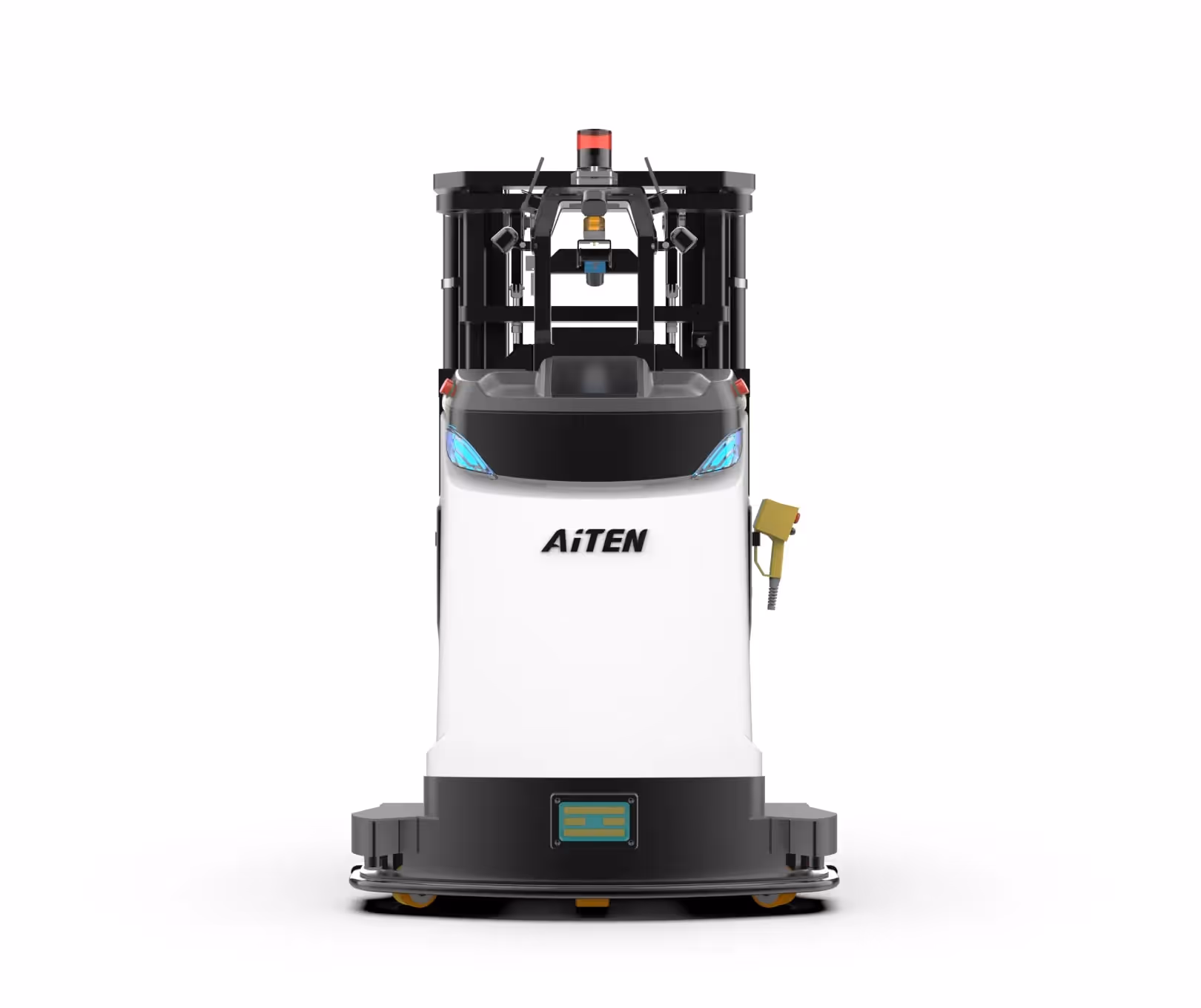

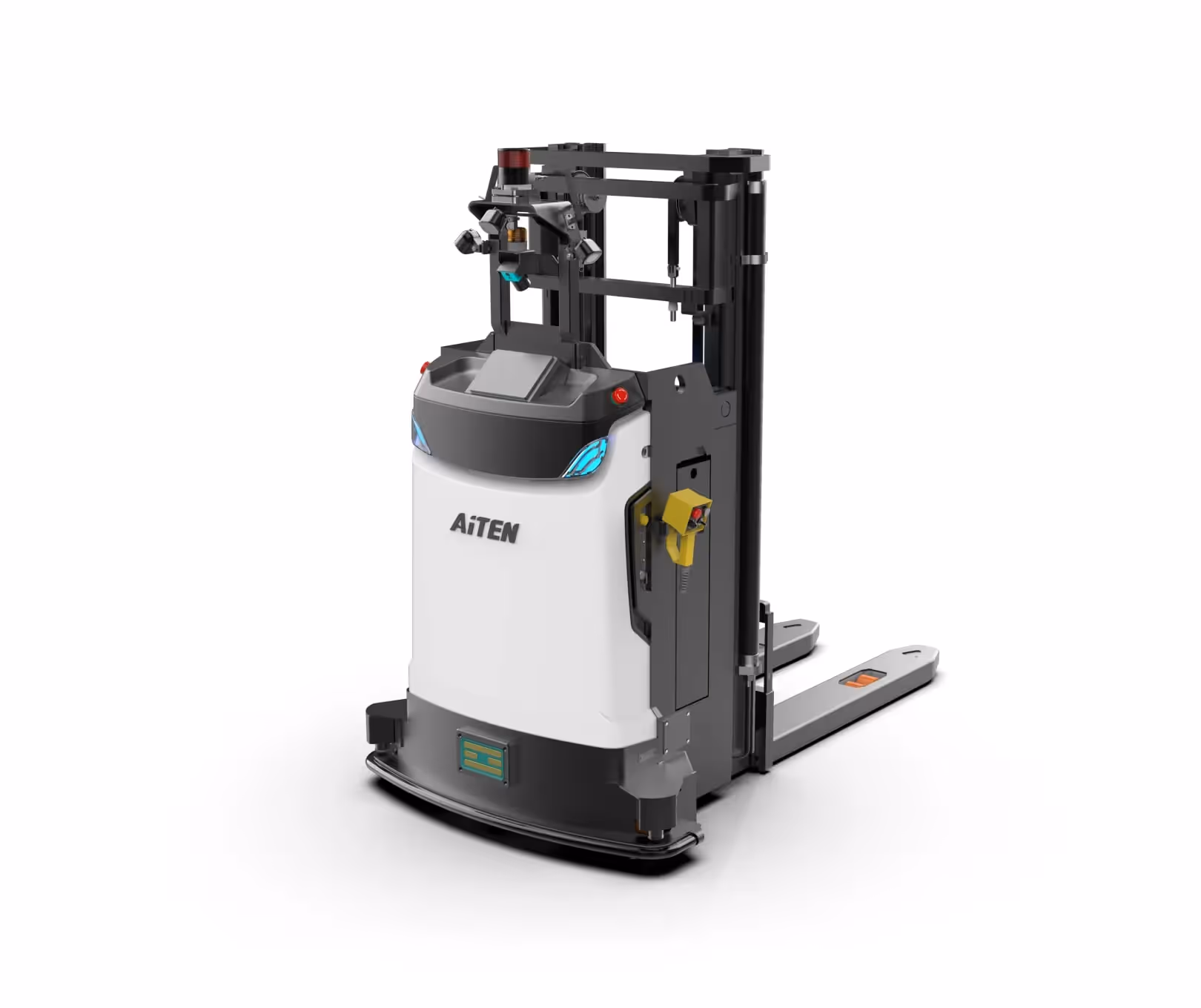

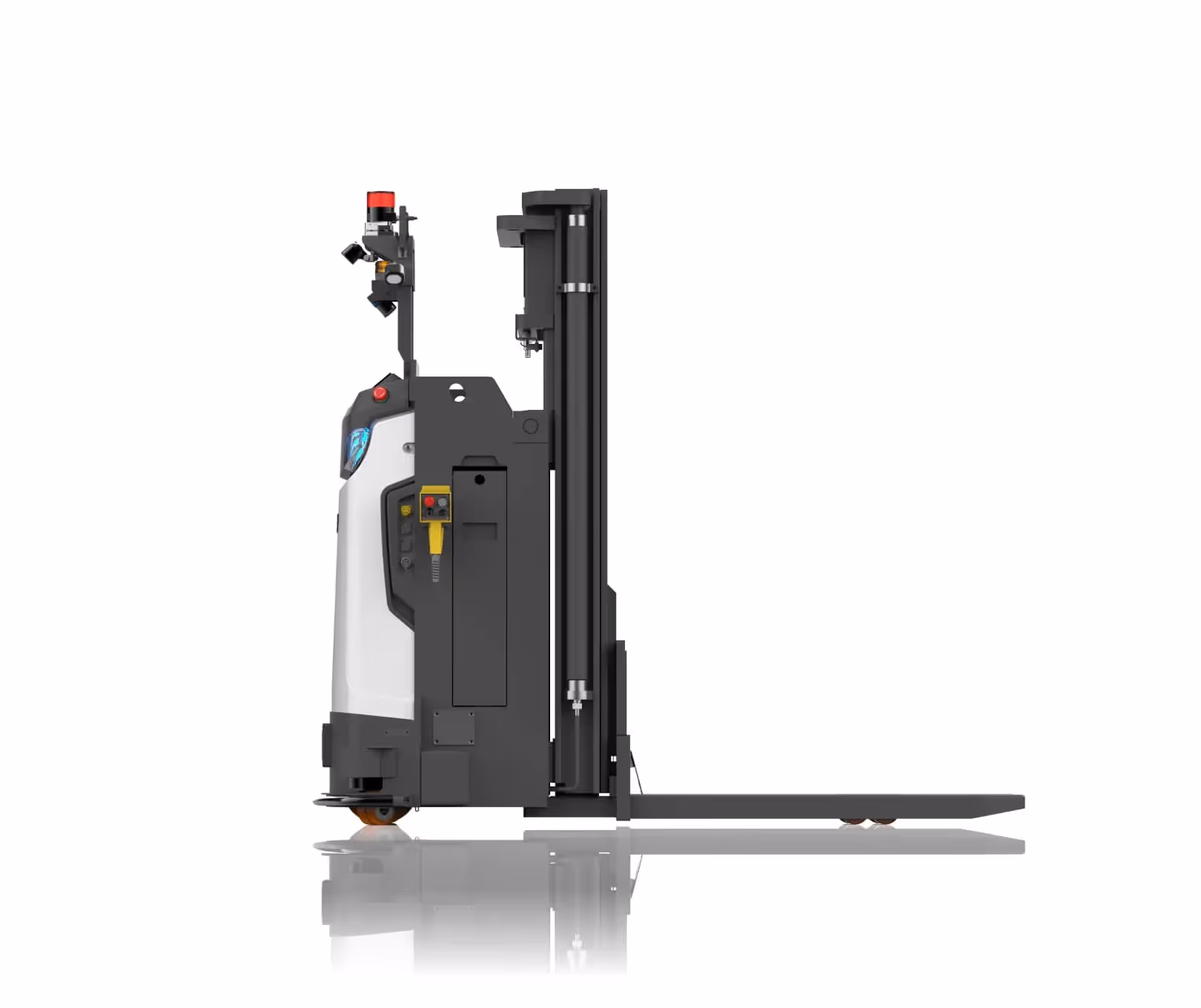

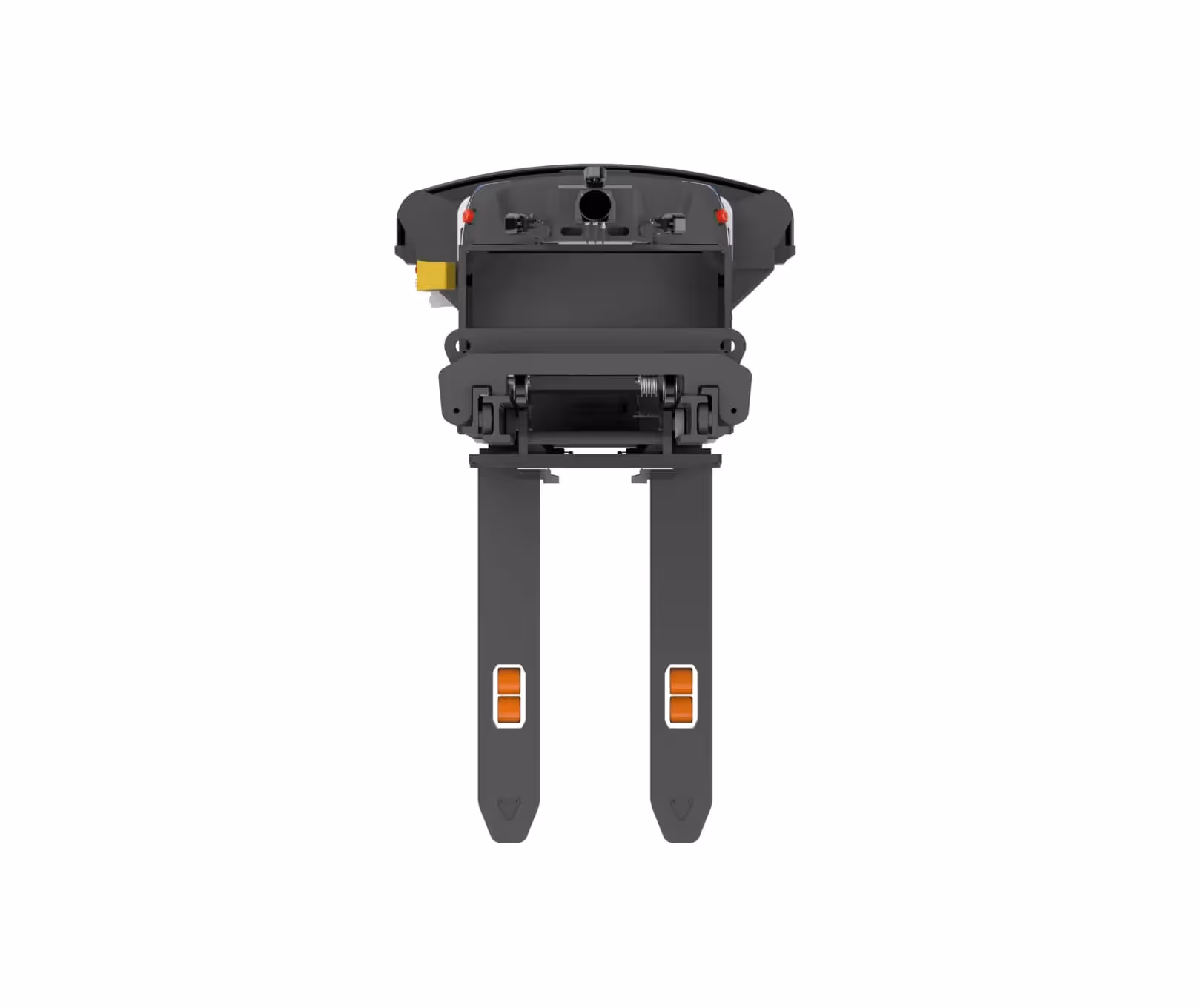

AS30
Dimensions (L × W × H) 2175 x 1296 x 2095 mm
Rated Load 3,000 kg
Load Center 600 mm
Turning Radius 1950 mm
Right-Angle Stacking Aisle Width (1000x1200 Pallet, 1000 Fork Entry) 2770 mm
Lifting Height 1200mm
Travel Speed (no-load / full-load) 1.5/1 m/s
Battery Voltage/Capacity 24V/310 Ah
Solution
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M11.7271 20.001C16.2966 20.001 20.001 16.2966 20.001 11.7271C20.001 7.15749 16.2966 3.45312 11.7271 3.45312C7.15749 3.45312 3.45312 7.15749 3.45312 11.7271C3.45312 16.2966 7.15749 20.001 11.7271 20.001Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M3.45312 11.7266H20.001" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M11.7275 3.45312C13.796 5.72018 14.9737 8.66018 15.0371 11.7271C14.9737 14.7939 13.796 17.7339 11.7275 20.001C9.65906 17.7339 8.4814 14.7939 8.41797 11.7271C8.4814 8.66018 9.65906 5.72018 11.7275 3.45312Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M11.7271 20.001C16.2966 20.001 20.001 16.2966 20.001 11.7271C20.001 7.15749 16.2966 3.45312 11.7271 3.45312C7.15749 3.45312 3.45312 7.15749 3.45312 11.7271C3.45312 16.2966 7.15749 20.001 11.7271 20.001Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M3.45312 11.7266H20.001" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M11.7275 3.45312C13.796 5.72018 14.9737 8.66018 15.0371 11.7271C14.9737 14.7939 13.796 17.7339 11.7275 20.001C9.65906 17.7339 8.4814 14.7939 8.41797 11.7271C8.4814 8.66018 9.65906 5.72018 11.7275 3.45312Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M11.7271 20.001C16.2966 20.001 20.001 16.2966 20.001 11.7271C20.001 7.15749 16.2966 3.45312 11.7271 3.45312C7.15749 3.45312 3.45312 7.15749 3.45312 11.7271C3.45312 16.2966 7.15749 20.001 11.7271 20.001Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M3.45312 11.7266H20.001" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M11.7275 3.45312C13.796 5.72018 14.9737 8.66018 15.0371 11.7271C14.9737 14.7939 13.796 17.7339 11.7275 20.001C9.65906 17.7339 8.4814 14.7939 8.41797 11.7271C8.4814 8.66018 9.65906 5.72018 11.7275 3.45312Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M11.7271 20.001C16.2966 20.001 20.001 16.2966 20.001 11.7271C20.001 7.15749 16.2966 3.45312 11.7271 3.45312C7.15749 3.45312 3.45312 7.15749 3.45312 11.7271C3.45312 16.2966 7.15749 20.001 11.7271 20.001Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M3.45312 11.7266H20.001" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M11.7275 3.45312C13.796 5.72018 14.9737 8.66018 15.0371 11.7271C14.9737 14.7939 13.796 17.7339 11.7275 20.001C9.65906 17.7339 8.4814 14.7939 8.41797 11.7271C8.4814 8.66018 9.65906 5.72018 11.7275 3.45312Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M15.75 11.0625L14.0313 7.9375C13.8438 7.57188 13.475 7.33438 13.0625 7.3125H5.53125C5.21875 7.3125 4.90625 7.625 4.71875 7.9375C4.53125 8.25 2.875 11.375 2.875 11.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M19.5 15.4375H21.375V12C21.375 11.4813 20.9562 11.0625 20.4375 11.0625H3.5625C3.04375 11.0625 2.625 11.4813 2.625 12V15.4375H4.5M8.25 15.4375H15.75" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M6.375 17.3125C7.41053 17.3125 8.25 16.473 8.25 15.4375C8.25 14.402 7.41053 13.5625 6.375 13.5625C5.33947 13.5625 4.5 14.402 4.5 15.4375C4.5 16.473 5.33947 17.3125 6.375 17.3125Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 17.3125C18.6605 17.3125 19.5 16.473 19.5 15.4375C19.5 14.402 18.6605 13.5625 17.625 13.5625C16.5895 13.5625 15.75 14.402 15.75 15.4375C15.75 16.473 16.5895 17.3125 17.625 17.3125Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M15.75 11.0625L14.0313 7.9375C13.8438 7.57188 13.475 7.33438 13.0625 7.3125H5.53125C5.21875 7.3125 4.90625 7.625 4.71875 7.9375C4.53125 8.25 2.875 11.375 2.875 11.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M19.5 15.4375H21.375V12C21.375 11.4813 20.9562 11.0625 20.4375 11.0625H3.5625C3.04375 11.0625 2.625 11.4813 2.625 12V15.4375H4.5M8.25 15.4375H15.75" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M6.375 17.3125C7.41053 17.3125 8.25 16.473 8.25 15.4375C8.25 14.402 7.41053 13.5625 6.375 13.5625C5.33947 13.5625 4.5 14.402 4.5 15.4375C4.5 16.473 5.33947 17.3125 6.375 17.3125Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 17.3125C18.6605 17.3125 19.5 16.473 19.5 15.4375C19.5 14.402 18.6605 13.5625 17.625 13.5625C16.5895 13.5625 15.75 14.402 15.75 15.4375C15.75 16.473 16.5895 17.3125 17.625 17.3125Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M15.75 11.0625L14.0313 7.9375C13.8438 7.57188 13.475 7.33438 13.0625 7.3125H5.53125C5.21875 7.3125 4.90625 7.625 4.71875 7.9375C4.53125 8.25 2.875 11.375 2.875 11.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M19.5 15.4375H21.375V12C21.375 11.4813 20.9562 11.0625 20.4375 11.0625H3.5625C3.04375 11.0625 2.625 11.4813 2.625 12V15.4375H4.5M8.25 15.4375H15.75" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M6.375 17.3125C7.41053 17.3125 8.25 16.473 8.25 15.4375C8.25 14.402 7.41053 13.5625 6.375 13.5625C5.33947 13.5625 4.5 14.402 4.5 15.4375C4.5 16.473 5.33947 17.3125 6.375 17.3125Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 17.3125C18.6605 17.3125 19.5 16.473 19.5 15.4375C19.5 14.402 18.6605 13.5625 17.625 13.5625C16.5895 13.5625 15.75 14.402 15.75 15.4375C15.75 16.473 16.5895 17.3125 17.625 17.3125Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M15.75 11.0625L14.0313 7.9375C13.8438 7.57188 13.475 7.33438 13.0625 7.3125H5.53125C5.21875 7.3125 4.90625 7.625 4.71875 7.9375C4.53125 8.25 2.875 11.375 2.875 11.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M19.5 15.4375H21.375V12C21.375 11.4813 20.9562 11.0625 20.4375 11.0625H3.5625C3.04375 11.0625 2.625 11.4813 2.625 12V15.4375H4.5M8.25 15.4375H15.75" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M6.375 17.3125C7.41053 17.3125 8.25 16.473 8.25 15.4375C8.25 14.402 7.41053 13.5625 6.375 13.5625C5.33947 13.5625 4.5 14.402 4.5 15.4375C4.5 16.473 5.33947 17.3125 6.375 17.3125Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 17.3125C18.6605 17.3125 19.5 16.473 19.5 15.4375C19.5 14.402 18.6605 13.5625 17.625 13.5625C16.5895 13.5625 15.75 14.402 15.75 15.4375C15.75 16.473 16.5895 17.3125 17.625 17.3125Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M17.625 6.375H6.375V17.625H17.625V6.375Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M14.8125 9.1875H9.1875V14.8125H14.8125V9.1875Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M3.5625 9.1875H6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M3.5625 12H6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M3.5625 14.8125H6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 9.1875H20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 12H20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 14.8125H20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M14.8125 3.5625V6.375" stroke="black" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M12 3.5625V6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M9.1875 3.5625V6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M14.8125 17.625V20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M12 17.625V20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M9.1875 17.625V20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M17.625 6.375H6.375V17.625H17.625V6.375Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M14.8125 9.1875H9.1875V14.8125H14.8125V9.1875Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M3.5625 9.1875H6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M3.5625 12H6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M3.5625 14.8125H6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 9.1875H20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 12H20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 14.8125H20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M14.8125 3.5625V6.375" stroke="black" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M12 3.5625V6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M9.1875 3.5625V6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M14.8125 17.625V20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M12 17.625V20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M9.1875 17.625V20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M17.625 6.375H6.375V17.625H17.625V6.375Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M14.8125 9.1875H9.1875V14.8125H14.8125V9.1875Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M3.5625 9.1875H6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M3.5625 12H6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M3.5625 14.8125H6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 9.1875H20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 12H20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 14.8125H20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M14.8125 3.5625V6.375" stroke="black" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M12 3.5625V6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M9.1875 3.5625V6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M14.8125 17.625V20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M12 17.625V20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M9.1875 17.625V20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M17.625 6.375H6.375V17.625H17.625V6.375Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M14.8125 9.1875H9.1875V14.8125H14.8125V9.1875Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M3.5625 9.1875H6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M3.5625 12H6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M3.5625 14.8125H6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 9.1875H20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 12H20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 14.8125H20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M14.8125 3.5625V6.375" stroke="black" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M12 3.5625V6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M9.1875 3.5625V6.375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M14.8125 17.625V20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M12 17.625V20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M9.1875 17.625V20.4375" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M8.90625 10.2133C9.38156 9.88424 9.88781 9.56643 10.4166 9.25987C14.4525 6.93112 18.4322 6.26737 19.3069 7.78049C19.7034 8.46674 19.3912 9.48487 18.5559 10.6071" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M15.0928 13.7844C14.6175 14.1134 14.1113 14.4313 13.5825 14.7378C9.54658 17.0666 5.56689 17.7303 4.69221 16.2172C4.29564 15.5309 4.60783 14.5128 5.44314 13.3906" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M8.90625 13.7859C8.85844 13.2094 8.83594 12.6131 8.83594 12C8.83594 7.33969 10.2534 3.5625 12 3.5625C12.7931 3.5625 13.5187 4.34156 14.0728 5.62406" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M15.0923 10.2148C15.1402 10.7914 15.1627 11.3877 15.1627 12.0008C15.1627 16.6611 13.7452 20.4383 11.9986 20.4383C11.2055 20.4383 10.4798 19.6592 9.92578 18.3767" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M11.9986 15.5723C11.4755 15.3248 10.9467 15.0463 10.418 14.7398C6.38206 12.411 3.81988 9.29476 4.69175 7.78163C5.08831 7.09538 6.12331 6.85632 7.51549 7.01663" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M12 8.42969C12.5231 8.67719 13.0519 8.95563 13.5806 9.26219C17.6166 11.5909 20.1787 14.7072 19.3069 16.2203C18.9103 16.9066 17.8753 17.1456 16.4831 16.9853" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M8.90625 10.2133C9.38156 9.88424 9.88781 9.56643 10.4166 9.25987C14.4525 6.93112 18.4322 6.26737 19.3069 7.78049C19.7034 8.46674 19.3912 9.48487 18.5559 10.6071" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M15.0928 13.7844C14.6175 14.1134 14.1113 14.4313 13.5825 14.7378C9.54658 17.0666 5.56689 17.7303 4.69221 16.2172C4.29564 15.5309 4.60783 14.5128 5.44314 13.3906" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M8.90625 13.7859C8.85844 13.2094 8.83594 12.6131 8.83594 12C8.83594 7.33969 10.2534 3.5625 12 3.5625C12.7931 3.5625 13.5187 4.34156 14.0728 5.62406" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M15.0923 10.2148C15.1402 10.7914 15.1627 11.3877 15.1627 12.0008C15.1627 16.6611 13.7452 20.4383 11.9986 20.4383C11.2055 20.4383 10.4798 19.6592 9.92578 18.3767" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M11.9986 15.5723C11.4755 15.3248 10.9467 15.0463 10.418 14.7398C6.38206 12.411 3.81988 9.29476 4.69175 7.78163C5.08831 7.09538 6.12331 6.85632 7.51549 7.01663" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M12 8.42969C12.5231 8.67719 13.0519 8.95563 13.5806 9.26219C17.6166 11.5909 20.1787 14.7072 19.3069 16.2203C18.9103 16.9066 17.8753 17.1456 16.4831 16.9853" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M8.90625 10.2133C9.38156 9.88424 9.88781 9.56643 10.4166 9.25987C14.4525 6.93112 18.4322 6.26737 19.3069 7.78049C19.7034 8.46674 19.3912 9.48487 18.5559 10.6071" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M15.0928 13.7844C14.6175 14.1134 14.1113 14.4313 13.5825 14.7378C9.54658 17.0666 5.56689 17.7303 4.69221 16.2172C4.29564 15.5309 4.60783 14.5128 5.44314 13.3906" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M8.90625 13.7859C8.85844 13.2094 8.83594 12.6131 8.83594 12C8.83594 7.33969 10.2534 3.5625 12 3.5625C12.7931 3.5625 13.5187 4.34156 14.0728 5.62406" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M15.0923 10.2148C15.1402 10.7914 15.1627 11.3877 15.1627 12.0008C15.1627 16.6611 13.7452 20.4383 11.9986 20.4383C11.2055 20.4383 10.4798 19.6592 9.92578 18.3767" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M11.9986 15.5723C11.4755 15.3248 10.9467 15.0463 10.418 14.7398C6.38206 12.411 3.81988 9.29476 4.69175 7.78163C5.08831 7.09538 6.12331 6.85632 7.51549 7.01663" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M12 8.42969C12.5231 8.67719 13.0519 8.95563 13.5806 9.26219C17.6166 11.5909 20.1787 14.7072 19.3069 16.2203C18.9103 16.9066 17.8753 17.1456 16.4831 16.9853" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M8.90625 10.2133C9.38156 9.88424 9.88781 9.56643 10.4166 9.25987C14.4525 6.93112 18.4322 6.26737 19.3069 7.78049C19.7034 8.46674 19.3912 9.48487 18.5559 10.6071" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M15.0928 13.7844C14.6175 14.1134 14.1113 14.4313 13.5825 14.7378C9.54658 17.0666 5.56689 17.7303 4.69221 16.2172C4.29564 15.5309 4.60783 14.5128 5.44314 13.3906" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M8.90625 13.7859C8.85844 13.2094 8.83594 12.6131 8.83594 12C8.83594 7.33969 10.2534 3.5625 12 3.5625C12.7931 3.5625 13.5187 4.34156 14.0728 5.62406" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M15.0923 10.2148C15.1402 10.7914 15.1627 11.3877 15.1627 12.0008C15.1627 16.6611 13.7452 20.4383 11.9986 20.4383C11.2055 20.4383 10.4798 19.6592 9.92578 18.3767" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M11.9986 15.5723C11.4755 15.3248 10.9467 15.0463 10.418 14.7398C6.38206 12.411 3.81988 9.29476 4.69175 7.78163C5.08831 7.09538 6.12331 6.85632 7.51549 7.01663" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M12 8.42969C12.5231 8.67719 13.0519 8.95563 13.5806 9.26219C17.6166 11.5909 20.1787 14.7072 19.3069 16.2203C18.9103 16.9066 17.8753 17.1456 16.4831 16.9853" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M3.5625 3.5625H4.91813C5.59875 3.5625 6.18093 4.04906 6.30187 4.71844L8.625 17.625H19.0312" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M9.1875 6.375H19.0312C19.8075 6.375 20.4375 7.005 20.4375 7.78125V11.4713C20.4375 12.1125 20.0016 12.675 19.38 12.8325L8.34375 15.6562" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M8.625 20.4375C9.40165 20.4375 10.0312 19.8079 10.0312 19.0312C10.0312 18.2546 9.40165 17.625 8.625 17.625C7.84835 17.625 7.21875 18.2546 7.21875 19.0312C7.21875 19.8079 7.84835 20.4375 8.625 20.4375Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M19.0312 20.4375C19.8079 20.4375 20.4375 19.8079 20.4375 19.0312C20.4375 18.2546 19.8079 17.625 19.0312 17.625C18.2546 17.625 17.625 18.2546 17.625 19.0312C17.625 19.8079 18.2546 20.4375 19.0312 20.4375Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M10.3125 8.625V12.2812" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M13.6875 8.625V11.7188" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.0625 8.625V11.1562" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M3.5625 3.5625H4.91813C5.59875 3.5625 6.18093 4.04906 6.30187 4.71844L8.625 17.625H19.0312" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M9.1875 6.375H19.0312C19.8075 6.375 20.4375 7.005 20.4375 7.78125V11.4713C20.4375 12.1125 20.0016 12.675 19.38 12.8325L8.34375 15.6562" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M8.625 20.4375C9.40165 20.4375 10.0312 19.8079 10.0312 19.0312C10.0312 18.2546 9.40165 17.625 8.625 17.625C7.84835 17.625 7.21875 18.2546 7.21875 19.0312C7.21875 19.8079 7.84835 20.4375 8.625 20.4375Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M19.0312 20.4375C19.8079 20.4375 20.4375 19.8079 20.4375 19.0312C20.4375 18.2546 19.8079 17.625 19.0312 17.625C18.2546 17.625 17.625 18.2546 17.625 19.0312C17.625 19.8079 18.2546 20.4375 19.0312 20.4375Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M10.3125 8.625V12.2812" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M13.6875 8.625V11.7188" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.0625 8.625V11.1562" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M3.5625 3.5625H4.91813C5.59875 3.5625 6.18093 4.04906 6.30187 4.71844L8.625 17.625H19.0312" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M9.1875 6.375H19.0312C19.8075 6.375 20.4375 7.005 20.4375 7.78125V11.4713C20.4375 12.1125 20.0016 12.675 19.38 12.8325L8.34375 15.6562" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M8.625 20.4375C9.40165 20.4375 10.0312 19.8079 10.0312 19.0312C10.0312 18.2546 9.40165 17.625 8.625 17.625C7.84835 17.625 7.21875 18.2546 7.21875 19.0312C7.21875 19.8079 7.84835 20.4375 8.625 20.4375Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M19.0312 20.4375C19.8079 20.4375 20.4375 19.8079 20.4375 19.0312C20.4375 18.2546 19.8079 17.625 19.0312 17.625C18.2546 17.625 17.625 18.2546 17.625 19.0312C17.625 19.8079 18.2546 20.4375 19.0312 20.4375Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M10.3125 8.625V12.2812" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M13.6875 8.625V11.7188" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.0625 8.625V11.1562" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M3.5625 3.5625H4.91813C5.59875 3.5625 6.18093 4.04906 6.30187 4.71844L8.625 17.625H19.0312" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M9.1875 6.375H19.0312C19.8075 6.375 20.4375 7.005 20.4375 7.78125V11.4713C20.4375 12.1125 20.0016 12.675 19.38 12.8325L8.34375 15.6562" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M8.625 20.4375C9.40165 20.4375 10.0312 19.8079 10.0312 19.0312C10.0312 18.2546 9.40165 17.625 8.625 17.625C7.84835 17.625 7.21875 18.2546 7.21875 19.0312C7.21875 19.8079 7.84835 20.4375 8.625 20.4375Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M19.0312 20.4375C19.8079 20.4375 20.4375 19.8079 20.4375 19.0312C20.4375 18.2546 19.8079 17.625 19.0312 17.625C18.2546 17.625 17.625 18.2546 17.625 19.0312C17.625 19.8079 18.2546 20.4375 19.0312 20.4375Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M10.3125 8.625V12.2812" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M13.6875 8.625V11.7188" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.0625 8.625V11.1562" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M4.6875 6.25391H8.0625" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M4.6875 9.06641H8.0625" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M20.4375 20.4375H6.9375V13.6875L11.4375 10.5938V13.6875L15.9375 10.5938V13.6875L20.4375 10.5938V20.4375Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 16.9414H9.75" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M6.9375 20.4375H3.5625L4.6875 3.5625H8.0625L8.65875 12.5034" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M4.6875 6.25391H8.0625" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M4.6875 9.06641H8.0625" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M20.4375 20.4375H6.9375V13.6875L11.4375 10.5938V13.6875L15.9375 10.5938V13.6875L20.4375 10.5938V20.4375Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 16.9414H9.75" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M6.9375 20.4375H3.5625L4.6875 3.5625H8.0625L8.65875 12.5034" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M4.6875 6.25391H8.0625" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M4.6875 9.06641H8.0625" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M20.4375 20.4375H6.9375V13.6875L11.4375 10.5938V13.6875L15.9375 10.5938V13.6875L20.4375 10.5938V20.4375Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 16.9414H9.75" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M6.9375 20.4375H3.5625L4.6875 3.5625H8.0625L8.65875 12.5034" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>
<svg width="24" height="24" viewBox="0 0 24 24" fill="none" xmlns="http://www.w3.org/2000/svg"> <path d="M4.6875 6.25391H8.0625" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M4.6875 9.06641H8.0625" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M20.4375 20.4375H6.9375V13.6875L11.4375 10.5938V13.6875L15.9375 10.5938V13.6875L20.4375 10.5938V20.4375Z" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M17.625 16.9414H9.75" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> <path d="M6.9375 20.4375H3.5625L4.6875 3.5625H8.0625L8.65875 12.5034" stroke="currentcolor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round"/> </svg>

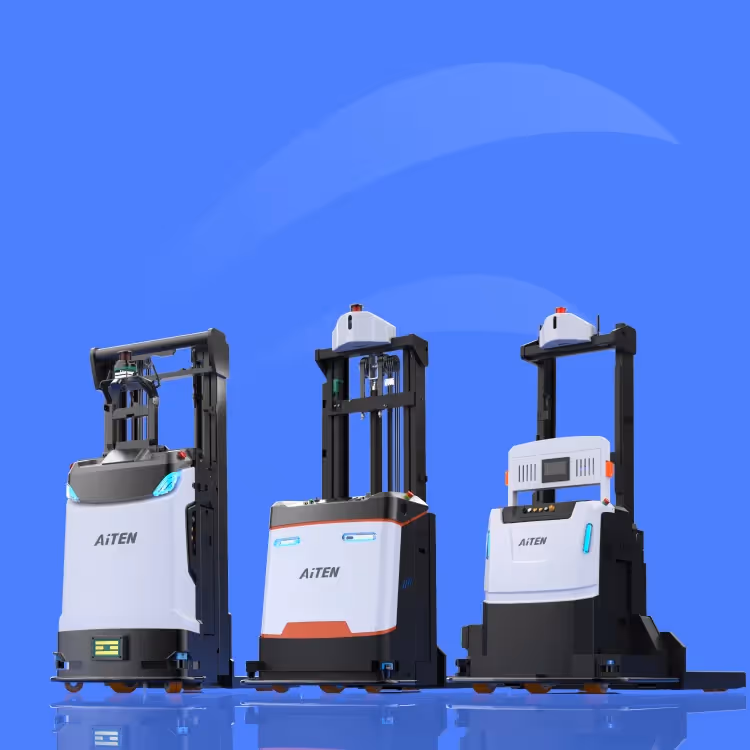

Ready to get started?
